Biological early-warning system

Mussels that watch your water, day and night

The Mosselmonitor® (Musselmonitor) continuously measures the behaviour of eight live mussels and raises an alarm the moment water quality changes. No sampling, no waiting for the laboratory: you know as it happens.

24/7continuous measurement
8mussels per system
10 sshortest measuring interval
15 mdeployable to this depth

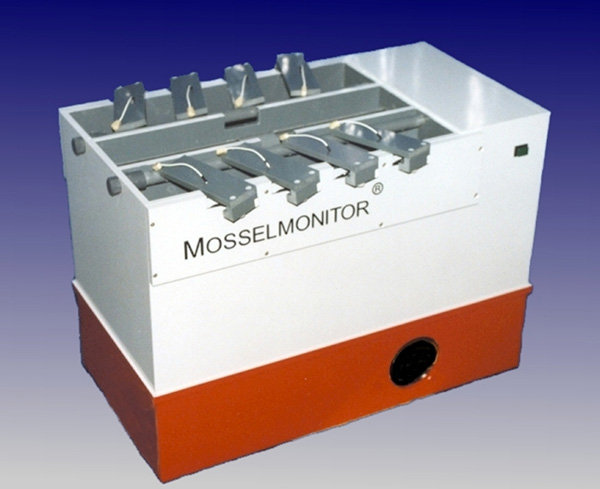

The Mosselmonitor: a white measuring unit with a red base and eight sensor connections on the lid
Alarm without a labPotential-free contact and serial data, ready to connect to your control system.

Trusted by, among others

WML Limburgs Drinkwater
Evides Waterbedrijf
Waterbedrijf Groningen
Wageningen University
SMAT Gruppo
Sitech Services
Auburn University
Why a Mosselmonitor

A sample tells you about yesterday. The mussel tells you about now.

Monitoring water quality with samples and laboratory analyses is costly and slow, and very often the result is that nothing was wrong. A contamination that passes between two samples goes unnoticed. The Mosselmonitor sees it.

Continuous instead of occasional

Every measuring cycle, adjustable from 10 seconds, the valve position of each mussel is measured. The result is an uninterrupted picture of your water, 24 hours a day, without anyone having to be on site.

The mussel is the sensor

A mussel filters water continuously and responds to what is in it, across a broad range of substances at once. Not a chemical sensor that sees a single compound, but a living organism that notices deviations.

An alarm when it matters

When several mussels close at the same time, start flapping or open less and less, the potential-free alarm contact closes. Your control system can act immediately, for instance by stopping an intake.

How it works

From shell movement to a reliable alarm

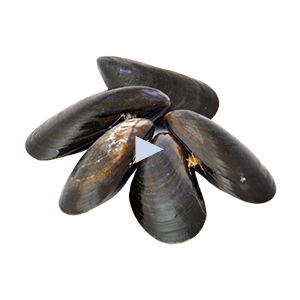

Biological

Healthy mussels are open about 70 to 80% of the time to breathe and feed. When the water is contaminated their behaviour changes: they stay closed longer, flap, or open less and less.

Electronic

Each shell half carries a small coil. The distance between the coils determines the induced signal and therefore the valve position. Eight mussels are read out individually and free of interference.

Functional

The built-in microcomputer converts every reading into a valve opening in percent, tests it against adjustable criteria and raises the alarm. Data are sent to your PC over the serial port.

Read how the Mosselmonitor works
Diagram: an open mussel with a measuring coil on each shell half, and next to it the valve opening as a graph with an alarm threshold
The distance between the two coils is the measure of the valve opening. When it drops below the set threshold, an alarm follows.
Applications

Wherever you want to know quickly that the water is changing

Fresh or salt, clean or polluted: with the right mussel species the Mosselmonitor can be deployed in a wide range of situations.

Drinking water intake

Monitor the raw water before the intake. On an alarm the intake can be stopped automatically, before a contamination reaches the treatment plant.

Surface water

Continuous insight into rivers, canals and lakes. The power supply is matched to your location.

Industrial effluent

Test your own discharge biologically, rather than against a list of substances only. You also see the effects of combinations that a chemical analysis misses.

Seawater and research

With the blue mussel the system also works in salt water. Universities and research institutes use the Mosselmonitor for ecotoxicological research.

Two versions

In the water, or next to it

Compare the two versions

The Mosselmonitor with the lid open: eight sensor arms above the mussel trays
Each mussel has its own sensor arm, so the behaviour of every mussel is assessed individually.
Proven in the field

A system that has been doing this for decades

The Mosselmonitor has been in use for many years at drinking water utilities, in industry and at research institutions in the Netherlands and abroad. The technology is robust and simple: during an overhaul in Slovakia, a system turned out to have been in operation for 19 years.

  • Individual assessment of each mussel, no distortion by averaging
  • Potential-free alarm contact and serial data output (RS422)
  • Stand-alone operation, with an external backup UPS as standard
  • Built-in temperature measurement for correct interpretation
  • Maintenance, overhaul and training by AquaDect itself
See who works with it
Software

Your data visible, stored and usable

With the supplied Present IT software you see the behaviour of each mussel live in a graph, store every measurement and communicate directly with the Mosselmonitor to change settings. Following several systems remotely is possible too.

In development: a new MosselMonitor Dashboard with live display, alarm analysis and reporting is currently undergoing long-term field testing. It is not yet available; as soon as that changes you will read it here.

More about the software

What you get as a user

  • Graphs per mussel and of the average
  • Storage of all measurement data, per day
  • Change settings in the Mosselmonitor directly
  • Follow several Mosselmonitors through an internet module
  • Add text to graphs and print them

Curious what the Mosselmonitor can do at your site?

Tell us about your water and your location. We are happy to think along and to propose an approach that fits your situation.
